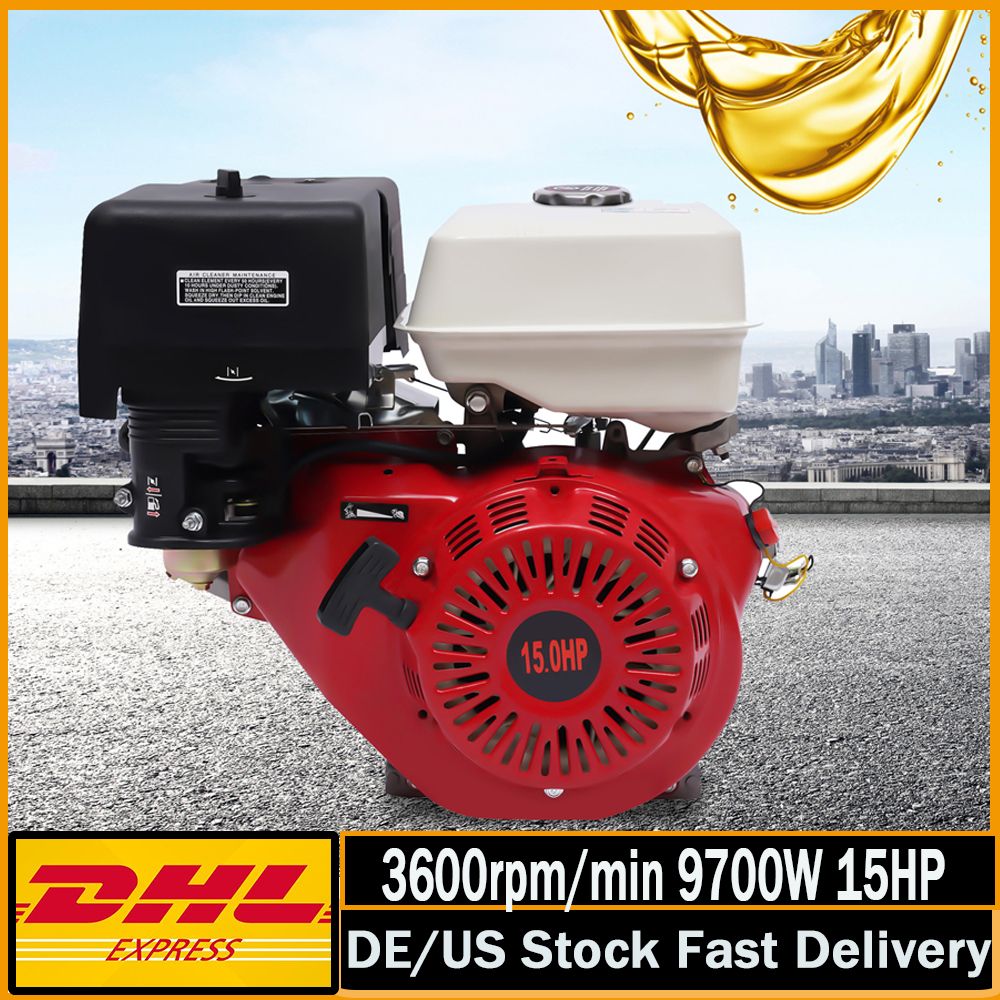

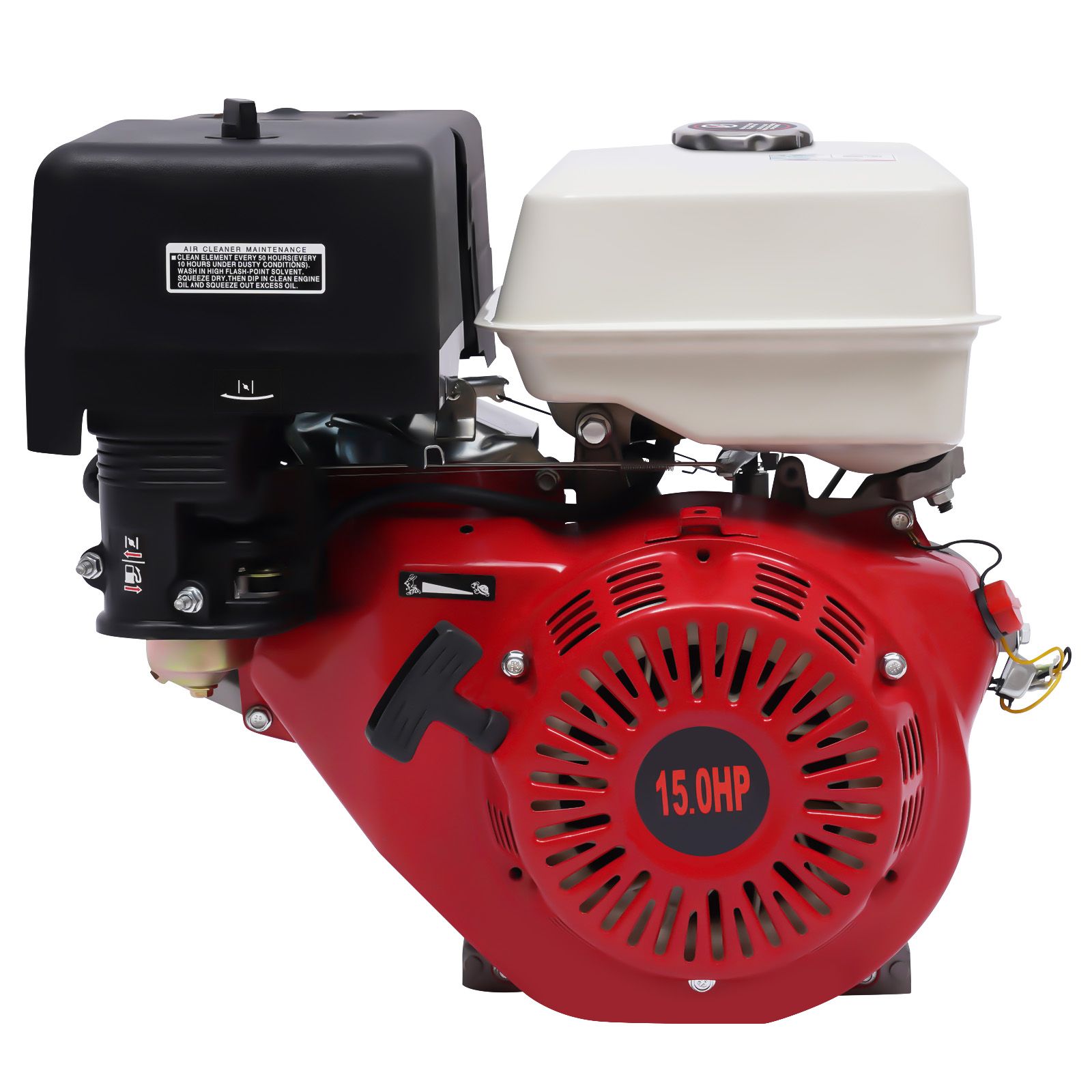

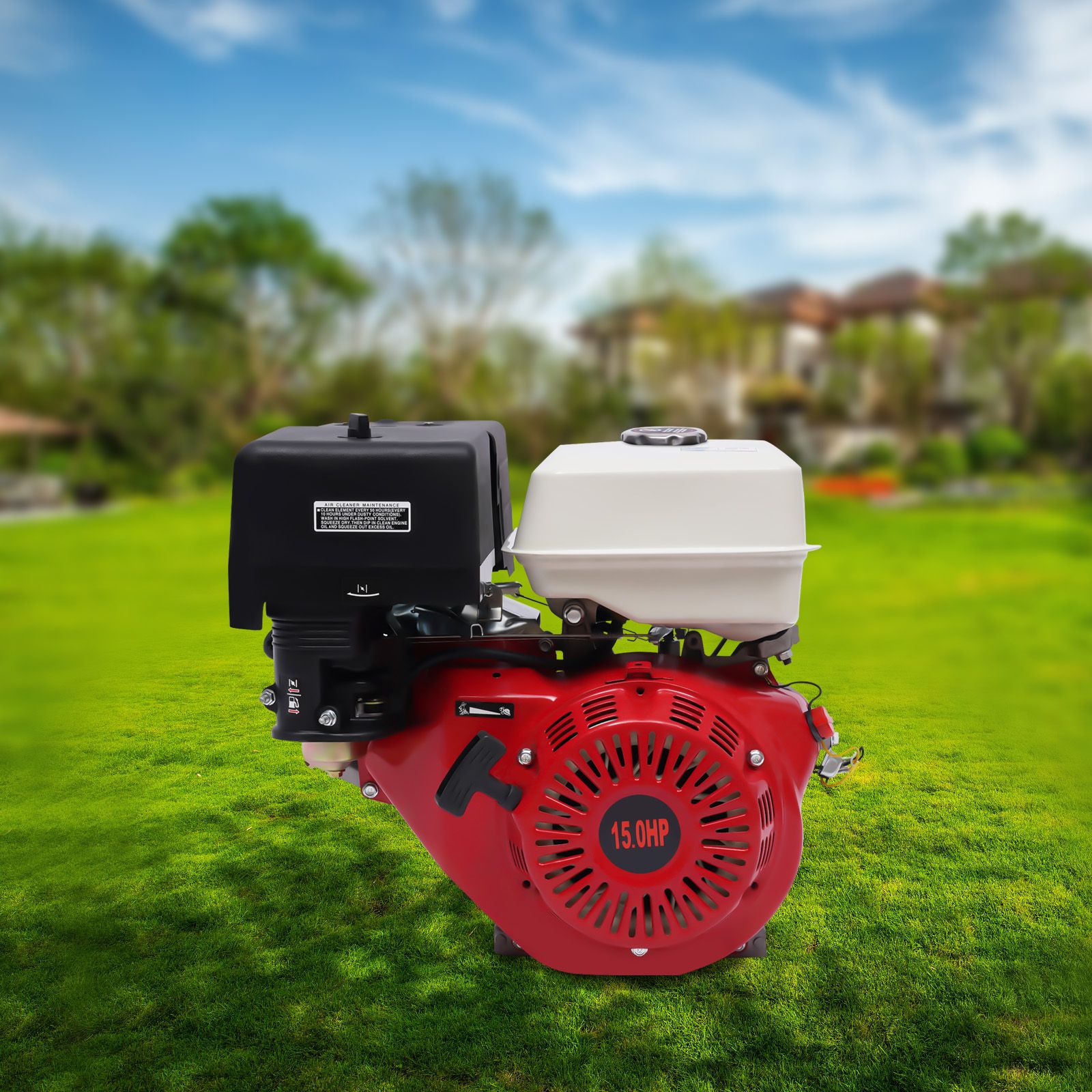

420CC 15HP 4-Stroke Portable Gasoline Engine Motor 3000-3600rpm/min 9700W Horizontal Go Kart Motor OHV for Home Back Up&RV Ready
Description
If you find manual labor very hard from time to time, then you definitely need this gasoline engine! It can be used as an engine for weeders, pumpers, sprinklers, and other machines. With it, you can save a lot of energy. And it also has a silencer, so you can have a quiet working environment.
Key Features
Strong Power: The engine has a power of up to 9.7Kw and a rated speed of up to 3600r/min, our engines produce a lot of power and help you get the job done quickly and well.
Large Fuel Tank: The engine has a large fuel tank capacity of 6.5L/219.82oz allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.
Efficient Cooling System: The built-in forced air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.
High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Thus the machine will not be easily damaged and has a longer service life.
Good Noise Reduction Effect: The product adopts a silencer, which has a good noise reduction effect. This engine works hard to create a quiet working environment for you.
Anti-vibration: This engine has a rubber gasket, which can effectively prevent the machine from damaging the fuel tank during vibration.
Integrated Design: The machine body adopts an integrated design, so you don't need to go through the assembly alone. You can simply install it on the machine and start using it.
Low Fuel Consumption: The OHV overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. You can also save a lot of money on fuel costs.
Details
Nylon Pulling Wire: The pulling wire is made of 100% nylon, which is more wear-resistant and durable and does not easy not to pile up for easy starting.
Screws with Caps: All the external screws of the body are added with protective caps. This design can effectively improve its stability and protect your safety in the process of use.
Application
This product can be used widely with pumping machines, microtillers, cleaning machines, spraying machines, medicine machines, threshing machines, smoothing machines, etc.
Specification
Material: Aluminum, Iron
Displacement: 420ml/14.2oz
Engine: 4-Strokes, Single Cylinder, Air-cooled
Horsepower: 15hp
Color: Black
Max Output: 9.7/3600 Kw/r/min
Rated Output: 8.8/3600 Kw/r/min
Max Torque: 27/2500 N.m/r/min
Fuel Consumption: Less Than or Equal to 374 g/Kw.h
Oil Consumption: Less Than or Equal to 6.8 g/Kw.h
Fuel Tank Capacity: 6.5L/219.82oz
Engine Oil Capacity: 1.1L/37.2oz
Starting System: Hand Start
Air Cleaner: Dry or Half-dry, Oil-immersed, Foam Filter
Fuel Type: Unleaded Petrol
Output Shaft Direction of Rotation: Counterclockwise (From the Output Shaft Side)
Gross Weight: 29.95kg/ 66.03lbs
Net Weight: 30.5kg/ 67.24lbs
Package Size: 55*47*50cm/21.6*18.5*19.6in
How to Use
1. Check the oil level, to the line above H. Add about 600ml 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Remark: if the engine oil is not enough, it will cause the engine not to start. If it starts, the engine will shake.)
2. Add petrol 92# or 95# (Remark: when you put the fuel tank cap, you should fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)
3. Turn the speed lever to the left side (new machine keeps the position, and don't move it). Turn the check valve to the left side. Turn the fuel control valve on the right side.
4. Turn the engine switch to the ON position.
5. Start the engine.
6. After the engine starts, turn the check valve to the right side.
1 * Engine
1 * Instruction Manual
All Accessories for Installation
Notes
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
Description
If you find manual labor is very hard from time to time, then you definitely need this gasoline engine! Our gasoline engine adopts 4-stroke engine. It can easily start by hand. And the power of 15HP and the speed of 3600RPM can provide you with strong power, so you can save a lot of energy when using it. It also has a silencer, so you can have a quiet working environment.
Key Features
Low Fuel Consumption: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. Air filter also improves air filtration performance and reduce wear. Both can help you save a lot of money on fuel costs.
Strong Power: The gasoline engine boasts a robust 15HP horsepower, a displacement of 420cc and a rotating speed of 3600RPM, which provides you with strong power and ensures that your work can be completed quickly and easily.
Stable Running: The engine is equipped with metal cam, forged crankshaft and cast iron cylinder liner, ensuring superior performance and a longer lifespan. Start it manually and enjoy stable engine operation every time.
Efficient Cooling System: The built-in forced air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.
High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Thus the machine will not be easily damaged and has a longer service life.
Low Noise: The product adopts a silencer, which has a good noise reduction effect. This engine works hard to create a quiet working environment for you.
Large Fuel Tank: The engine has a large fuel tank capacity of 1.7 gallons allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.
Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit.
Details
Comfortable Handle: The ergonomic T-shaped start handle provides a point of application of force for easy and comfortable starting.
Pulling Wire:The pulling wire is made of nylon, which is more wear-resistant and durable.
Damper Handle: Properly closing a portion of the air intake during cold engine starts can increase thegasoline concentration of the mixture entering the cylinders and improve engine starting performance.
Speed Lever: By moving this lever you can change the engine speed to suit different usage scenarios.
Engine Switch: A red engine switch can help you to turn off the engine easily when you don't use it.
Application
This product is widely used in go-karts, compressors, trenchers, generators, high-pressure washers, cement mixers, etc, as long as the crankshaft matches.
Specification
Type: Single Cylinder, 4-stroke
Color: Black
Material: Aluminium, Iron
Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying
Power Source: Gasoline
Engine Cooling Type: Air Cooling
Maximum Torque: 26.5N-m
Bore Stroke: 88*64mm/3.4*2.5inch
Crankshaft Diameter: 25mm/0.98inch
Crankshaft Length: 70mm/2.75inch
Displacement: 420cc
Horsepower: 15hp
Rated Power: 8800W
Maximum Power: 9700W
Rotational Speed: 3600rpm
Lubrication Oil Capacity: 1.1L/0.29 Gallon
Fuel Tank Capacity: 6.5L/1.7 Gallons
Fuel Consumption Rate: ≤374g/ kw. h
Starter System: Hand Start
Gross Weight: 36.2kg/79.8lbs
Net Weight: 27.95kg/61.6lbs
Product Size: 33*41*43cm/12.9*16.1*16.9inch
Package Size: 55*47*50cm/21.6*18.5*19.6inch
Package Included
1* Gasoline Engine
1* Multilingual Manual
All Accessories for Assembly
Notes
1.Professional installation is highly recommended
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
