15HP 4-Stroke 420cc OHV Horizontal Shaft Gas Engine Recoil Start Go Up&RV Ready Kart Motor

Description

If you find manual labor is very hard from time to time, then you definitely need this gasoline engine! Our gasoline engine adopts 4-stroke engine. It can easily start by hand. And the power of 15HP and the speed of 3600RPM can provide you with strong power, so you can save a lot of energy when using it. It also has a silencer, so you can have a quiet working environment.

Key Features

Low Fuel Consumption: The overhead valve is used, which effectively helps reduce carbon buildup and dramatically improves fuel savings. Air filter also improves air filtration performance and reduce wear. Both can help you save a lot of money on fuel costs.

Strong Power: The gasoline engine boasts a robust 15HP horsepower, a displacement of 420cc and a rotating speed of 3600RPM, which provides you with strong power and ensures that your work can be completed quickly and easily.

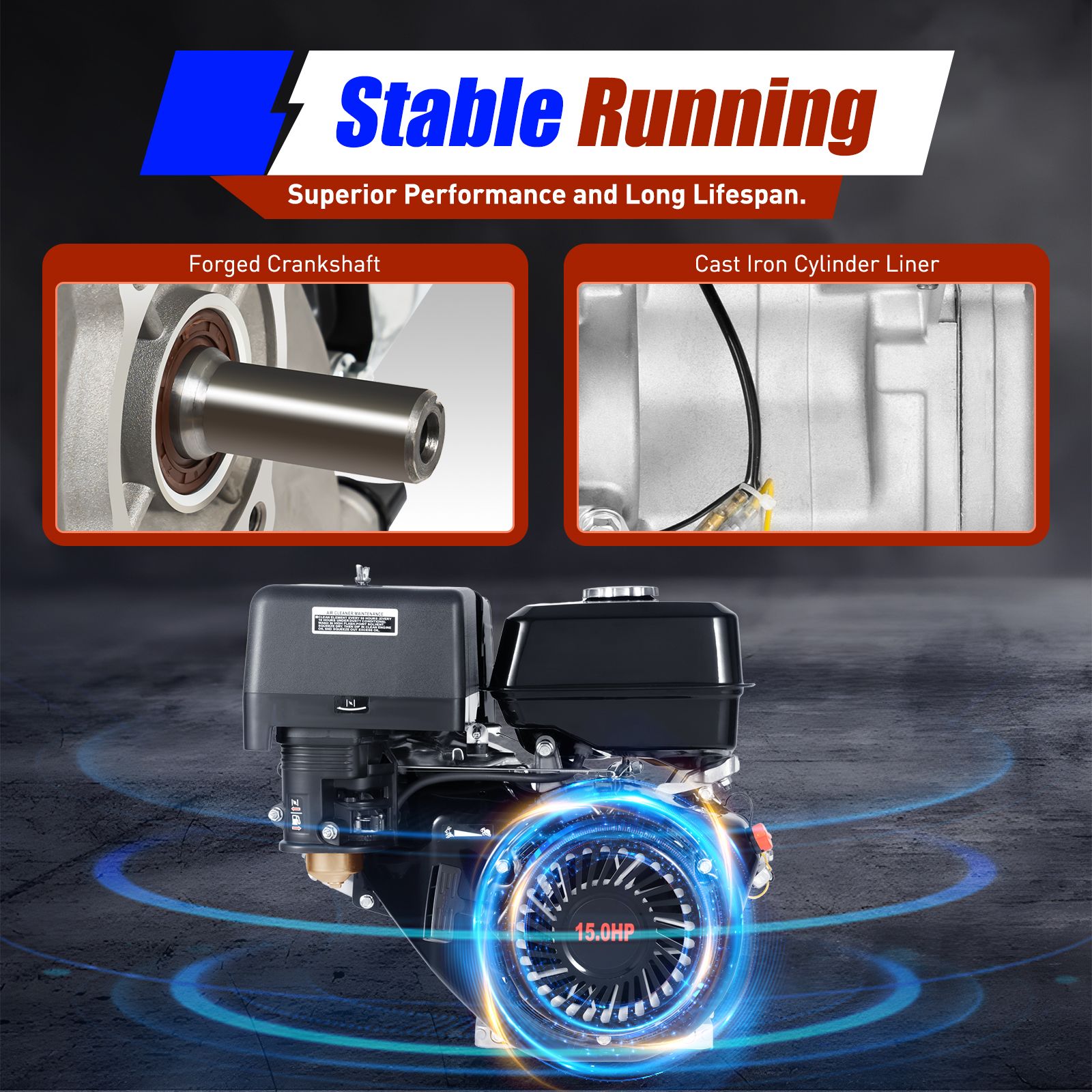

Stable Running: The engine is equipped with metal cam, forged crankshaft and cast iron cylinder liner, ensuring superior performance and a longer lifespan. Start it manually and enjoy stable engine operation every time.

Efficient Cooling System: The built-in forced air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.

High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Thus the machine will not be easily damaged and has a longer service life.

Low Noise: The product adopts a silencer, which has a good noise reduction effect. This engine works hard to create a quiet working environment for you.

Details

Comfortable Handle: The ergonomic T-shaped start handle provides a point of application of force for easy and comfortable starting.

Pulling Wire:The pulling wire is made of nylon, which is more wear-resistant and durable.

Damper Handle: Properly closing a portion of the air intake during cold engine starts can increase the gasoline concentration of the mixture entering the cylinders and improve engine starting performance.

Speed Lever: By moving this lever you can change the engine speed to suit different usage scenarios.

Engine Switch: A red engine switch can help you to turn off the engine easily when you don't use it.

Application

This product is widely used in go-karts, compressors, trenchers, generators, high-pressure washers, cement mixers, etc, as long as the crankshaft matches.

Specification

Type: Single Cylinder, 4-stroke

Color: Black

Material: Aluminium, Iron

Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying

Power Source: Gasoline

Engine Cooling Type: Air Cooling

Maximum Torque: 26.5N-m

Bore Stroke: 88*64mm/3.4*2.5inch

Crankshaft Diameter: 25mm/0.98inch

Crankshaft Length: 70mm/2.75inch

Displacement: 420cc

Horsepower: 15hp

Rated Power: 8800W

Maximum Power: 9700W

Rotational Speed: 3600rpm

Lubrication Oil Capacity: 1.1L/0.29 Gallon

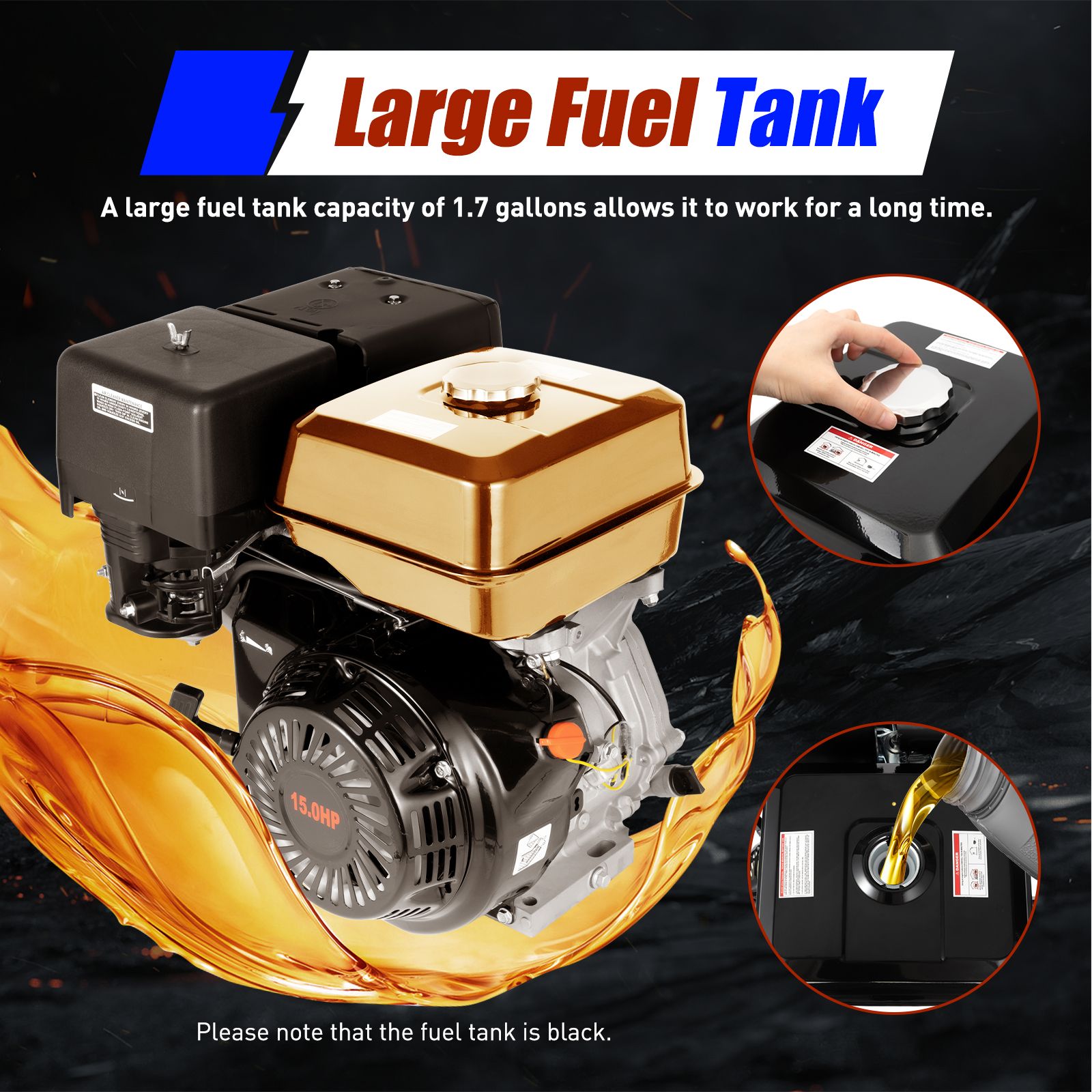

Fuel Tank Capacity: 6.5L/1.7 Gallons

Fuel Consumption Rate: ≤374g/ kw. h

Starter System: Hand Start

Gross Weight: 36.2kg/79.8lbs

Net Weight: 27.95kg/61.6lbs

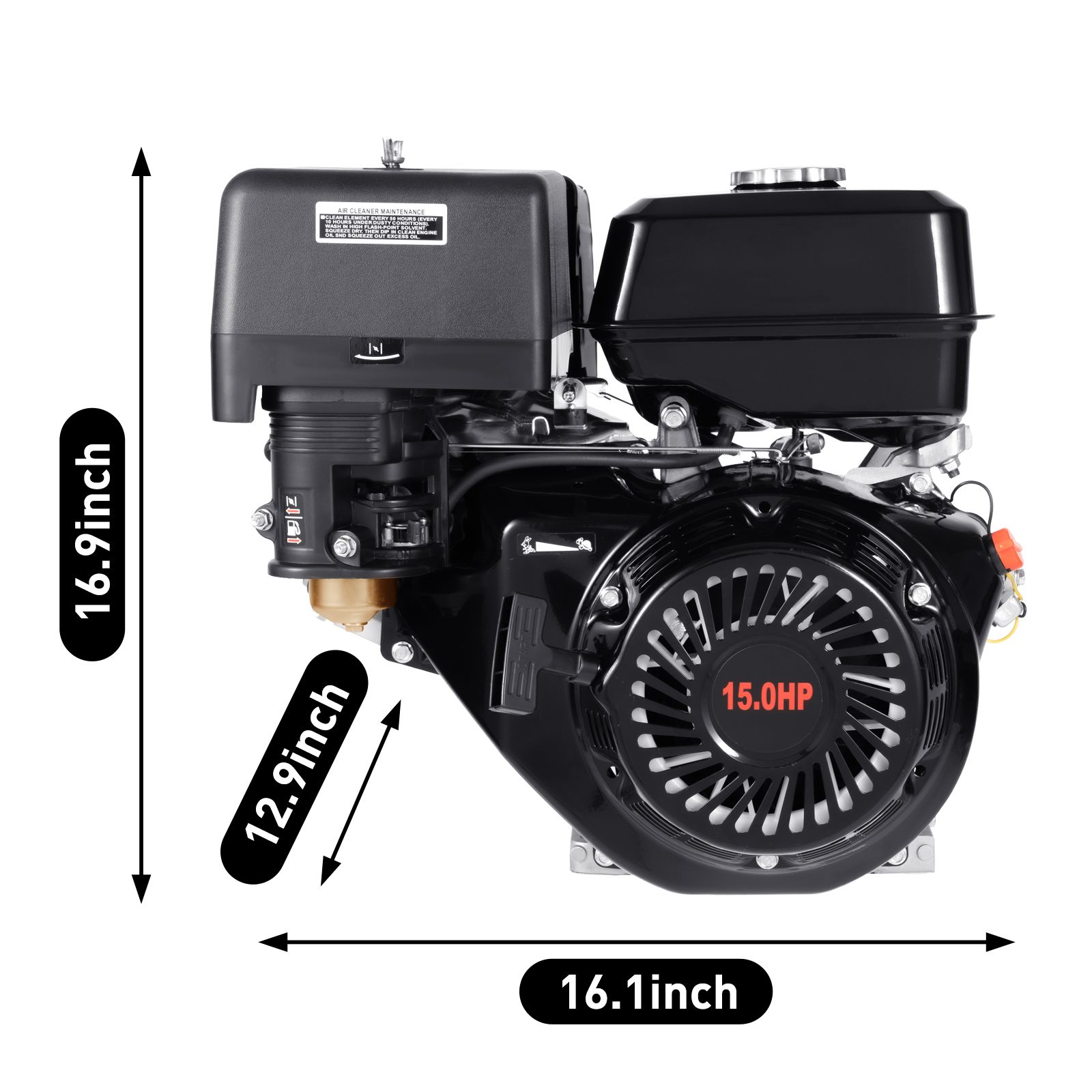

Product Size: 33*41*43cm/12.9*16.1*16.9inch

Package Size: 55*47*50cm/21.6*18.5*19.6inch

Package Included

1* Gasoline Engine

1* Multilingual Manual

All Accessories for Assembly

Notes

1.Professional installation is highly recommended

2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
