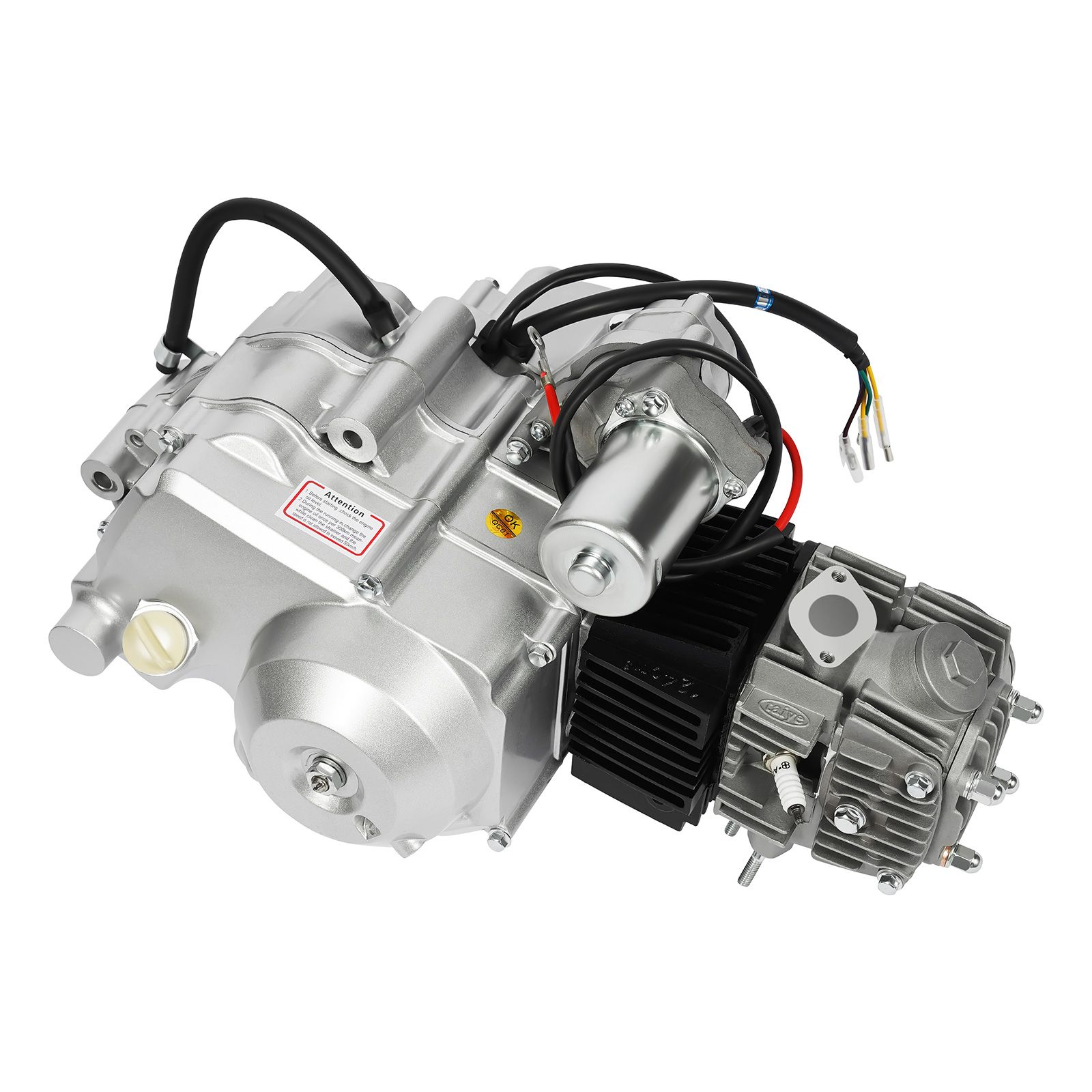

125cc 4 stroke ATV Engine Motor Kit w/ Reverse Electric Start Semi Auto Go kart Quad+ Reverse
Warm reminder:
The exclusive sales rights of this product belong to the Exclusive Memory Store. Other products that use the same pictures as our store are all counterfeit and pirated products. Buyers are advised to recognize the Exclusive Memory Store. Our products have quality and a 3-year after-sales guarantee, and we are absolutely responsible to consumers! Please be cautious when placing orders for other pirated and plagiarized products!
Perfect service:
1. Our products are shipped from USA and Germany and can arrive quickly in 5-10 days.
2. If you have any questions, please contact us and do not directly raise a dispute. I can provide you with a return/refund/compensation/replacement
3. Note: After sending the message, don't worry. Because of our time difference, we will respond to your message within 24 hours. 100% refund for quality problems and damage
NOTE:
Installation Manual Is NOT Included
Professional Installation Is Highly Recommended
Specifications:
ENGINE SIZE : 125CC
GEAR SYSTEM : 3 FORWARD; NEUTRAL; REVERSE
Type : Horizontal, single-cylinder, 4-stroke, air-cooled
Start Method : Electrical Start
Bore x Stroke : 52.4 × 55.5 mm, 119.7 mL
Top Engine Mount : 92mm
Bottom Engine Mount: 82mm
Bolt to Bolt :152mm (6")
Compression ratio : 9.0: 1
Maximum net power/ rpm : 5.8 kw/ 7500r/ min±375 r/ min
Maximum torque/ rpm : 8.5 N.m/5000r/min±250 r/min
Idle speed : 1500 r/min±100r/min
Front sprocket : 428-14T
Ignition : CDI
Air Filter : 35mm
Carburetor : PZ19
Starter : Electrical Start
Lubrication : Pressure/splash
Oil capacity : 900ml
Fits (For the reference):
ENGINE SIZE : 125CC
Atomik, Pitpro, TDR, Hummer, Orion, Xmoto, Lei,Dmx, Swd, Tommahawk, Monsoon, Grudge, Kazuma, Bull,
Trooper, Hunter, Motox, Trojan, Blitz, Crusade, Link, Bigfoot, Kuda, Motorworks, Nitrous, Reign, ddr, Fury, Prox,
Raider, Zongshen, Chongqing, Loncin, Ducar, Lifan, Gy6, Thumpster, Thumbstar, Go kart, Quad, Dirt bike, ATV,
Pit bike, Dirt bike, Buggy, Pocket rocket.
Wiring:
1. Five wires (Plug): For gear indicator
2. Yellow wire: For storage battery
3. Pink (or Yellow) wire: For storage battery
4. Black & Red wire: For signal trigger
5. Green wire: For grounding
6. Blue & White: For trigger coil

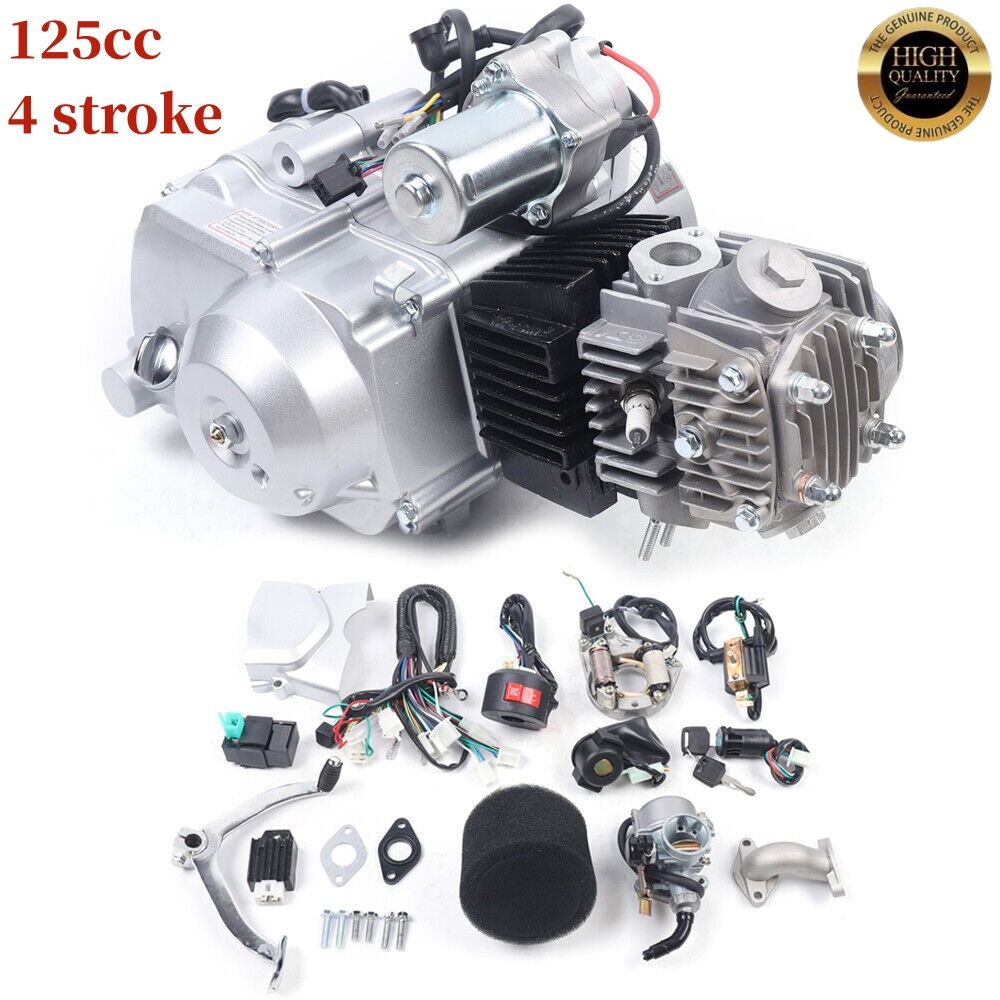

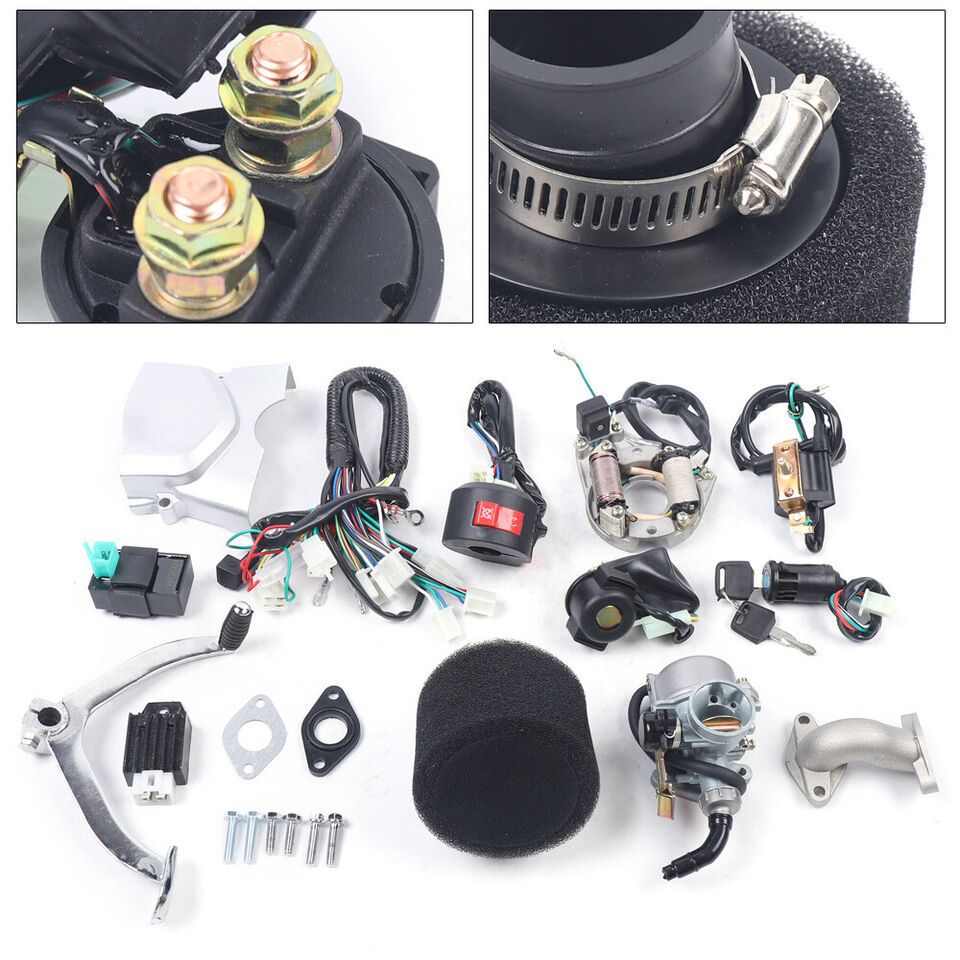

Package includes:
it comes with:Wiring+ carby+Airfilter+ Chain case + Gasket As you see in the picture
